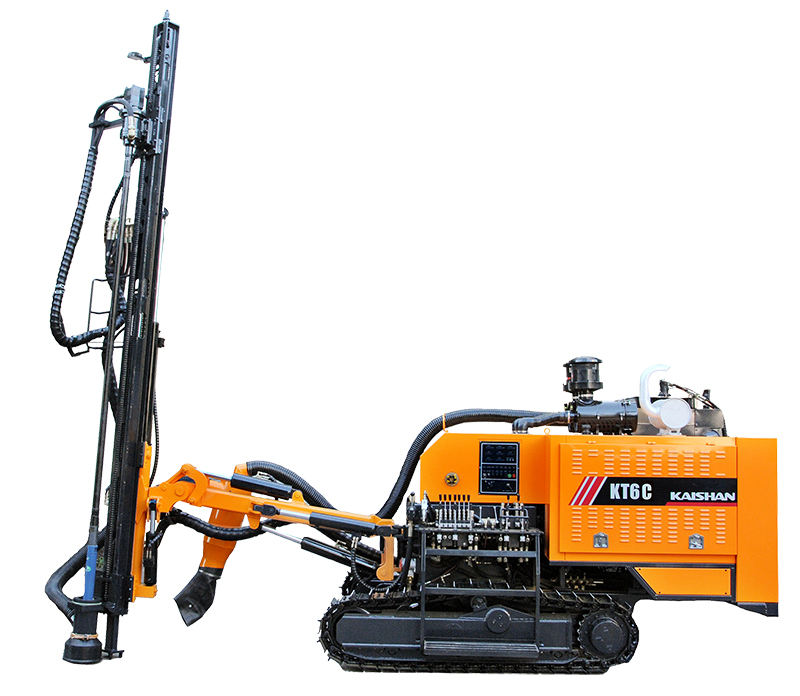

KT6C Integrated Down the hole Drill Rig for Open Use

This product has been discontinued and removed from our shelves.

The KT6C Integrated down the hole drill rig for open use is an advanced drilling device integrating a down hole drilling system and screw air compression system. It features the typical compact structure found in our other products as well as excellent integrity and mobility. Equipped with a Cummins China stage III engine, the drill rig meets national standards for emissions and environmental impact. This outstanding machinery is characterized by high energy efficiency, safety, environmental-friendliness, flexibility, simple operation, and stability.

Brief Parameters
Drilling diameter: Φ80-105mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3000mm
Supporting power: Cummins QSB5.9-C210-30(154KW/210HP)
Stable hydraulic system
