Air Compressor
Our screw air compressor, as an important construction machinery parts, can be widely for the construction for the construction equipment in various industries like the construction projects of road, railway, building construction, water conservancy project, mining, shipbuilding, energy resource exploitation, and so on. Comparing with similar product, our screw air compressor is 15% more energy efficient. Each model can be added with frequency converting function.
-
- KSCY Series Portable Screw Air Compressor
Working Pressure: 8(116) - 20(300) Bar (Psi)
Free Air Delivery: 6(220) - 21(750) m³/min (cfm)
Power: 55 (75) – 240(310) KW (HP)
-
- KSDY Portable Screw Air Compressor
Working Pressure: 8(116)-18(261) Bar (Psi)
Free Air Delivery: 13.6(476)- 22(775) m³/min(CFM)
Power: 75(100)- 160(215) KW (HP)
-
- KSZJ Portable Screw Air Compressor
Working Pressure: 1.5(210)-3(435) Mpa (Psig)
Free Air Delivery: 15(530)- 37(1332) m³/min(CFM)
Power: 192(180)- 404(550) KW (HP)
-
- LGCY Single-Stage Diesel Screw Type Air Compressor
Working Pressure: 7(101)-17(246) Bar (Psi)
Free Air Delivery: 6(214)- 32(1143) m³/min(CFM)
Power: 70(90)- 265(360) KW (HP)
-
- LGCY Two-Stage Diesel Screw Type Air Compressor
Working Pressure: 15(218)-35(508) Bar (Psi)
Free Air Delivery: 12(430)- 43(1548) m³/min(CFM)
Power: 70(90)- 265(360) KW (HP)
-

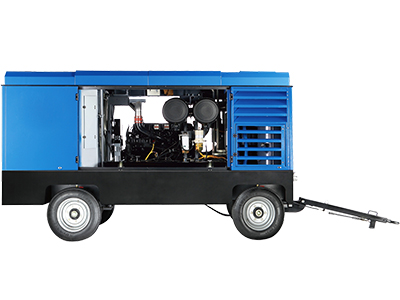

- LGY Series Portable Screw Air Compressor
Working Pressure: 8(116)-18(261) Bar (Psi)
Free Air Delivery: 12(430)- 17(599) m³/min(CFM)
Power: 70(90)- 265(360) KW (HP)
The screw compressor comes in 5 types, including:
(1) LGCY portable diesel screw compressor (stationary type is available): working air pressure: 0.7-3.5MPa, air consumption: 6-39m³/min, diesel engine power: 58-515kW
(2) LGDY potable electric screw compressor: working air pressure: 0.7- 2.4MPa, air consumption: 3-40m³/min, electromotor power: 18.5-315kW
(3) LG stationary screw compressor: working air pressure: 0.7- 2.4MPa, air consumption: 0.8-72m³/min, electromotor power: 7.5-400kW
(4) MLGF potable anti-explosion electric screw air compressor: working air pressure: 0.7-1.25MPa, air consumption: 3.6-42m³/min, electromotor power: 22-250kW
(5) LGS stationary water-cooled electric screw compressor: working air pressure: 0.7-1.3MPa, air consumption: 4.8-66m³/min, electromotor power: 18.5-560kW
