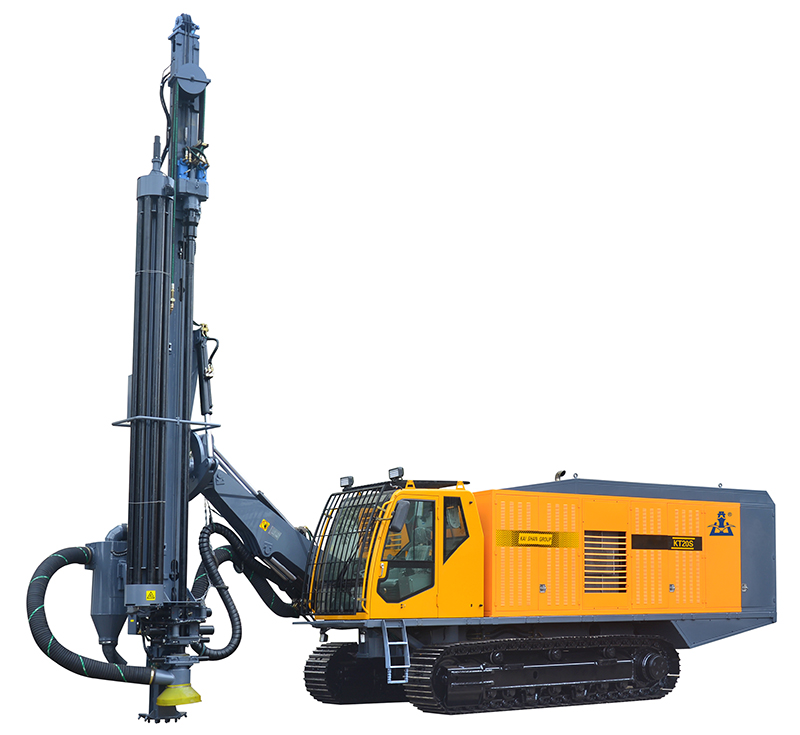

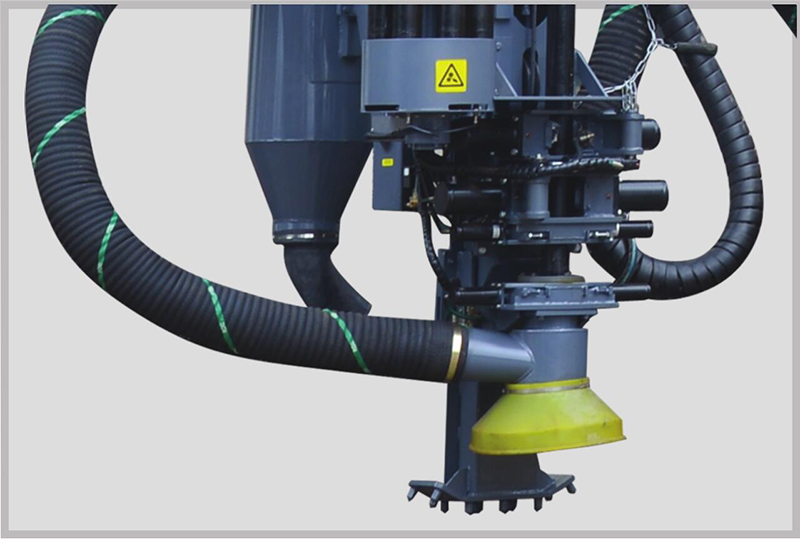

The KT20S integrated dual-power down the hole drill rig for open use is a heavy duty piece of drilling equipment developed by our company. It is fully equipped to meet the needs of large open-pit mines. Its travelling, propulsion, rotation, and angle adjustments are hydraulically driven. While it is traveling, the power stems from the diesel engine. The high air pressure screw nose and high air pressure DTH hammer help to ensure high efficiency drilling. It is equipped with a hydraulic dry dust collector and a wet dust remover is optional. The hydraulic mechanism is used to dismount the drilling rod, the floating joint protects the thread of the drilling rod, and the automatic unloading rod device to relieve labor intensity. The air conditioned cab provides a comfortable space for the operator.
Technical Parameters
Model of drill rig
KT20S
Drilling hardness
f=6-20
Drilling diameter
135-254 mm
Depth of economical drilling (depth of automatic extension rod)
35 m
Drilling rod (φ× length of drilling rod)
φ102/φ114/φ127/φ146×5000 mm
DTH Hammer
K5、K6、K8
Method of dust removal
Method of dust removal Dry (hydraulic cyclonic laminar flow)/wet (optional)
Method of extension rod
Automatic unloading rod
Protection of thread of drilling rod
Equipped with floating device to protect the thread of drilling rod
