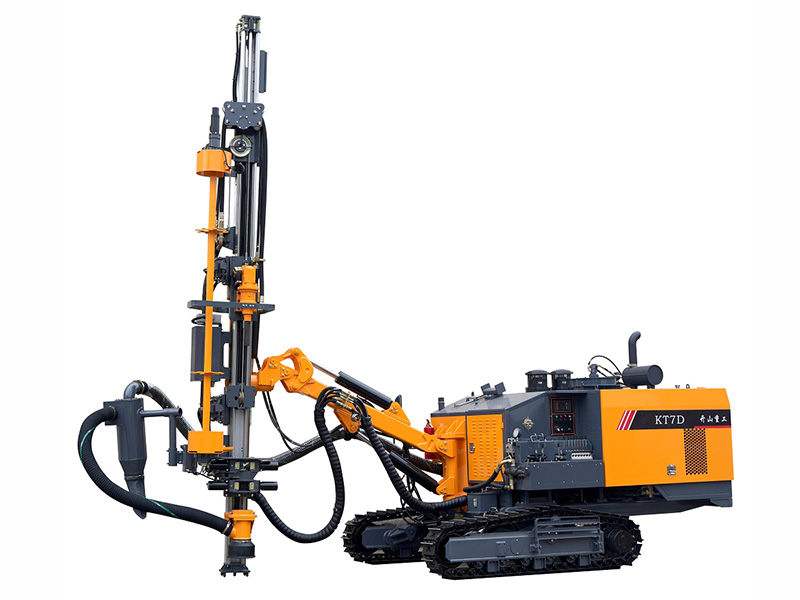

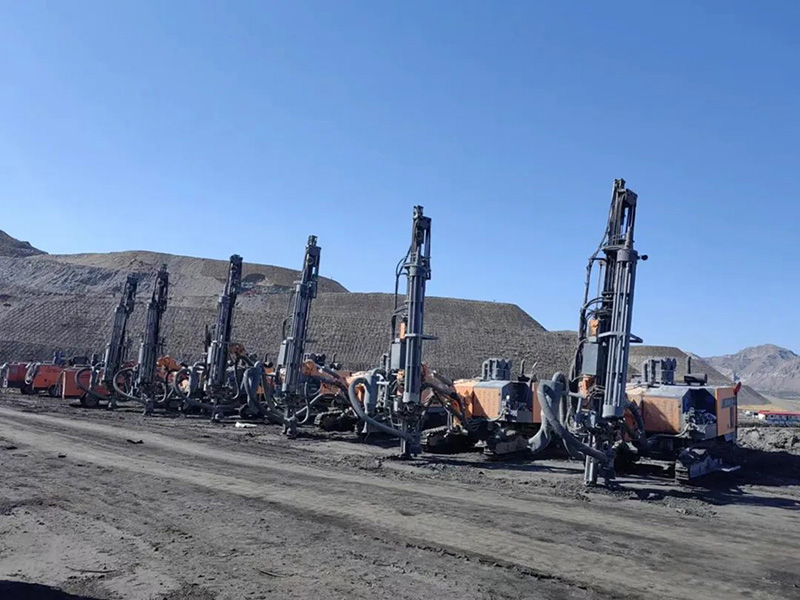

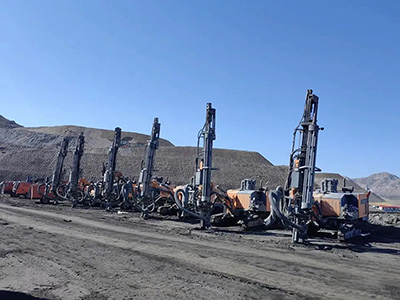

The integrated DTH drilling rig is designed to meet the demands of on-site mining operations. It is a fully automatic rod-handling DTH drilling rig, suitable for borehole diameters of 90-135mm and a drilling depth of up to 24 meters. The rig is equipped with a high-power Yuchai engine, a two-stage 15/18 compressor airend, and a large-section high-strength aluminum alloy guide rail, along with an optimized hydraulic system. It integrates the drilling system and the screw air compression system into a single unit, both driven by a six-cylinder diesel engine. This results in a compact structure and easy mobility. The high-pressure integrated rig features a unique design with a large airflow capacity of 15m³/min and high pressure of 1.8MPa, ensuring sufficient air supply for the drilling hammer.

Key Parameters

Drilling Diameter: Ø90-135mm
Drilling Depth: 24m
Engine: Yuchai YCA07240-T300 (176kW/2200r/min)

Configurations
    1. KT7D/KT7H Integrated DTH Drilling Rig for Open Use

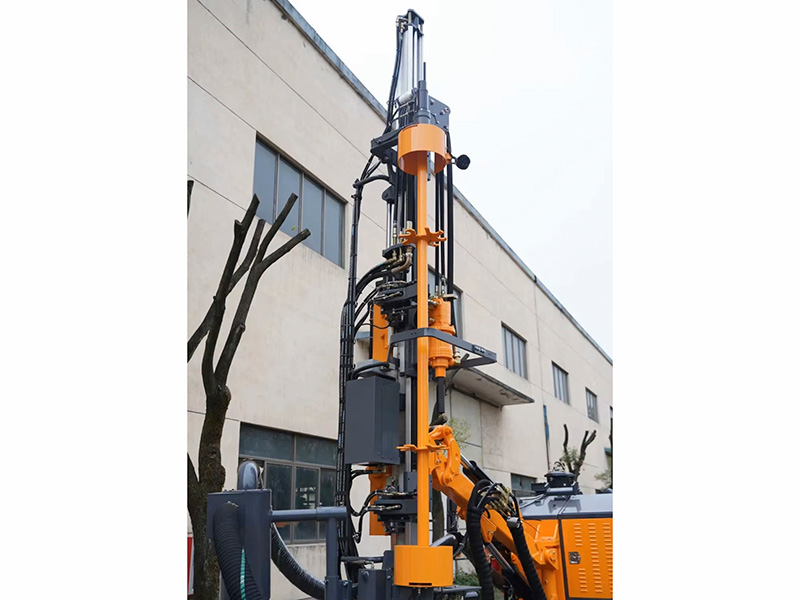

    2. Large-section aluminum alloy guide rail with fully automatic rod handling system

      The large-section aluminum alloy guide rail ensures sufficient strength and is paired with a flexible and convenient fully automatic rod handling system and rod storage. This setup improves work efficiency while reducing labor intensity. The rod storage has a capacity of 7+1 rods, supporting a drilling depth of 24 meters.

    1. KT7D/KT7H Integrated DTH Drilling Rig for Open Use

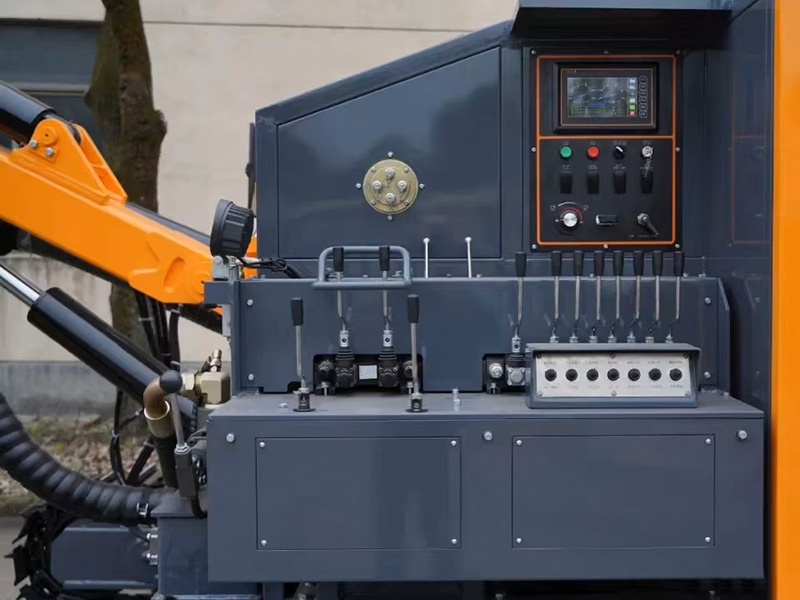

    2. Centralized control platform

      The highly centralized control console features a simple and convenient layout, making it easier to intuitively assess the rig's status. All action indicators are clear, and the operation is straightforward.

    1. KT7D/KT7H Integrated DTH Drilling Rig for Open Use

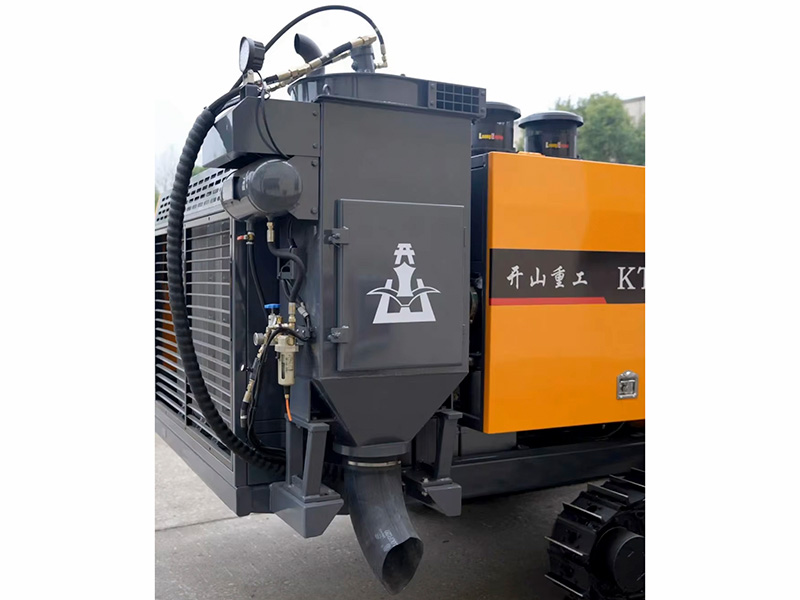

    2. High-efficiency dust collection system

      Equipped with a dry, high-efficiency dust collection system to provide a comfortable working environment.

    1. KT7D/KT7H Integrated DTH Drilling Rig for Open Use

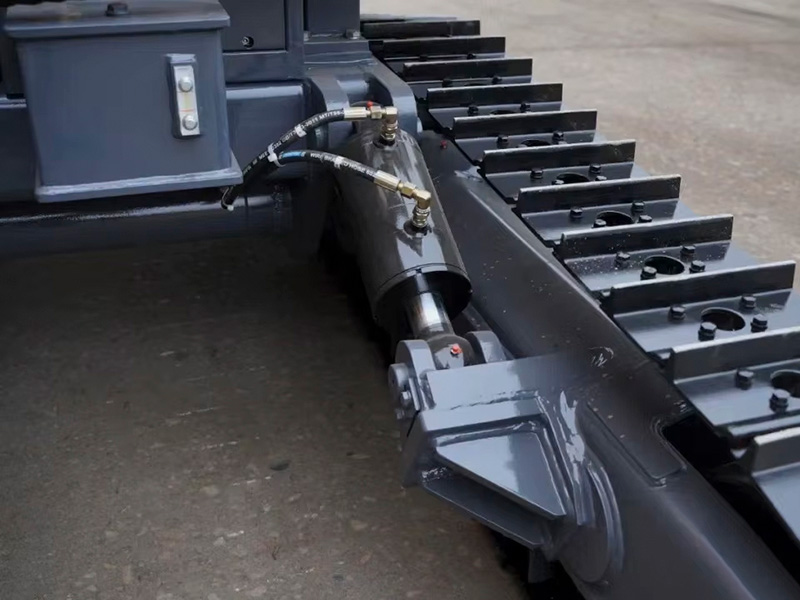

    2. Engineering Crawler with Hydraulic Levelling Cylinders

      The engineering crawler is equipped with frame leveling hydraulic cylinders, providing strong climbing ability and suitability for various rugged terrains.

Technical Parameters
Drilling hardness f=6-20
Drilling diameter Ø90-135mm
Economical drilling depth 24m
Travelling speed 0-4km/h
Gradeability ≤25°
Ground clearance 430mm
Diesel engine Yuchai YCA07240-T300 (176kW/2200r/min)
Screw compressor Two stage compression 15m /min/18bar
Dimensions 8000×2300×2700mm
Weight 10000kg
Rotation speed 180rpm
Rotation torque 1560N ·m
Max. feed force 22KN
Lifting angle of drill boom Down 16°, up 48°
Tilt angle of feed beam 147°
Swing angle of feed beam Left 52°, right 53°
Swing angle of drill boom Left 50°, right 58°
Leveling angle ±10°
Feed distance 3590mm
Compensation length of feed beam 900mm
DTH hammer K3/K4
Drill pipe Ø64×3m
Drill pipe storage capacity 7+1 pipes
Drill pipe handling Automatic drill pipe handling
Dust collector 8 filter elements
