KT5C Integrated Down the hole Drill Rig for Open Use

KT5C Integrated Down the hole Drill Rig for Open Use
Inquiry

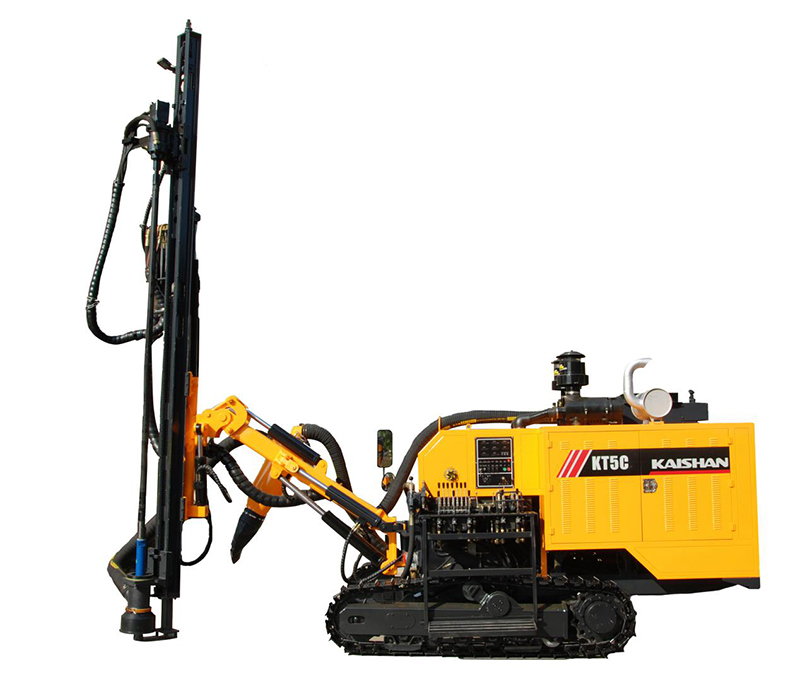

Our KT5C Integrated down the hole drill rig for open use is an advanced drilling device with an integrated screw air compressor system. The equipment is compact in structure and mobile while delivering outstanding performance and efficiency. Equipped with a Yuchai China stage III Engine, the drill rig meets all national standards for emissions and environmental impact.

Brief Parameters
Drilling diameter: Φ80-105mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3000mm
Supporting power: Yuchai power Yuchai YC6J190-T303 (140KW/190HP)

Technical Parameters
Model of drill rig KT5C
Drilling hardness f=6-20
Drilling diameter 80-105 mm
Depth of economical drilling 25 m
Travelling speed 2.5/4.0 km/h
Climbing capacity 30°
Ground clearance 430 mm
Power of complete machine 140 kW
Diesel engine Yuchai YC6J190-T303
Capacity of screw compressor 10 m³/min
Discharge pressure of screw compressor 15 bar
Outer dimensions (L×W×H) 6500×2400×2600 mm
Weight 8000 kg
Rotation speed of gyrator 0-120 r/min
Rotary torque 1400 N*m
Maximum push-pull force 25000 N
Lifting angle of drill boom Up 54°, down 26°
Tilt angle of beam 125°
Swing angle of carriage Right 47 °, left 47°
Lateral horizontal swing angle of carriage Right -15°～97°
Swing angel of drill boom Right 53°, left 15°
Leveling angle of frame Up 10°, down 9°
One-time advance length 3000 mm
Compensation length 900 mm
DTH hammer M3
Drilling rod φ64×3000 mm
Method of dust collecting Dry type (hydraulic cyclonic laminar flow)
Detail features

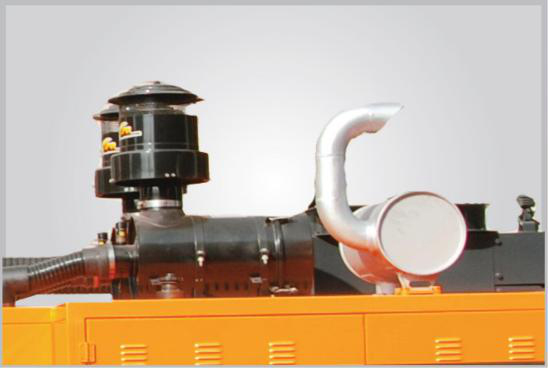

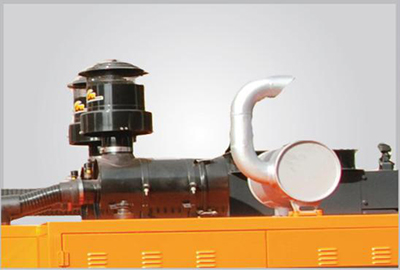

  • Air Cleaner
    Air Cleaner

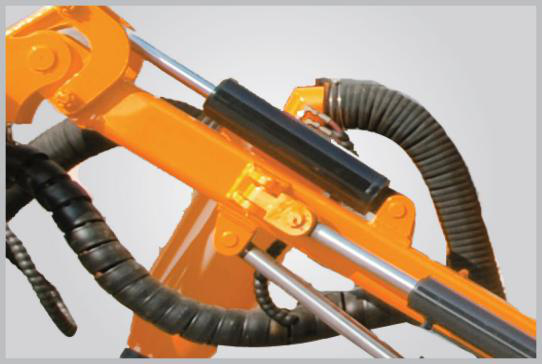

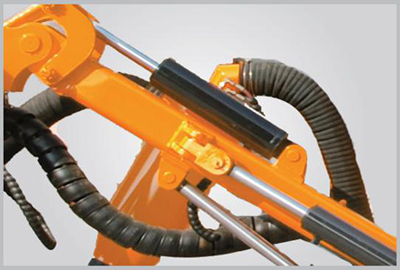

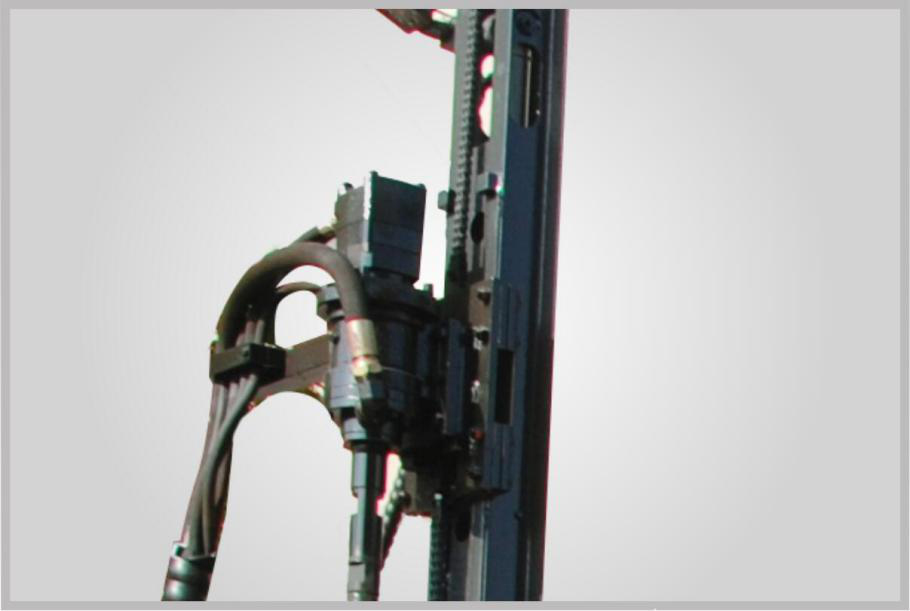

  • High torque gyrator
    High torque gyrator

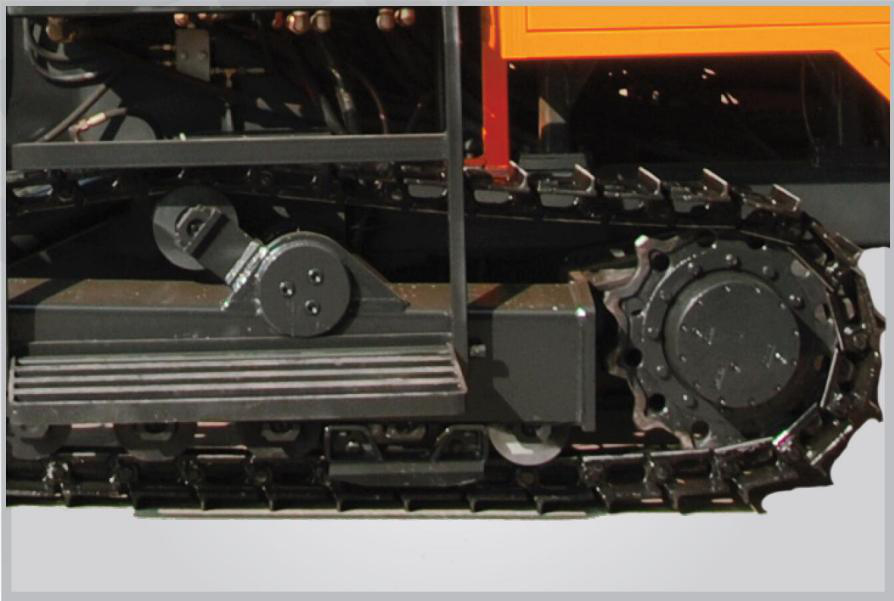

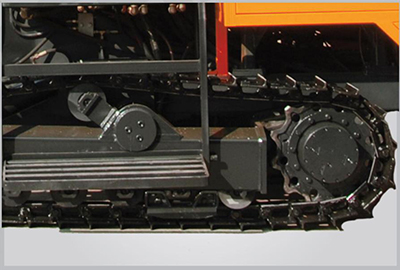

  • Steel track adaptable to all terrains
    Steel track adaptable to all terrains
  • Easy Used Control Panel
    Easy Used Control Panel
