KG300GF DTH Drilling Rig for Photovoltaic Foundation

KG300GF DTH Drilling Rig for Photovoltaic Foundation
Inquiry

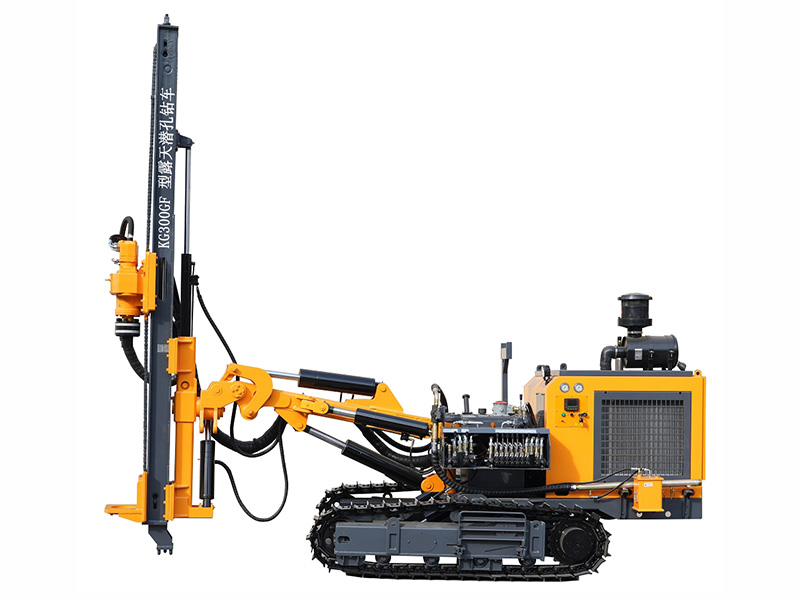

The DTH drilling rig is designed specifically for drilling foundation pile holes for photovoltaic projects. It features a powerful 73kW engine and an efficient desert air filter, allowing for a maximum drilling diameter of 305mm. The hydraulic system includes a high-pressure cast iron pump, reinforced wide crawler tracks, a 20A roller chain lifting system, and a large-section steel guide rail, all contributing to high durability and performance with a single 2.6-meter feed advance.

The rig’s rotary head is equipped with four hydraulic motors and high-modulus straight gears with a large reduction ratio, delivering up to 6000Nm of rotary torque, making it ideal for large-diameter pile drilling operations. The optional features include a 1-ton carriage winch, which is ideal for lifting drill bits, impact tools, and other equipment, making operations easier. An 8-ton carriage winch is also available, designed for use on steep slopes to provide the necessary traction and ensure stable rig operation.

Key Parameters

Drilling Diameter: Ø115-305mm
Feed Distance: 2680mm
Engine: YC4DK100-T304 (73.5kW/2200r/min)

Configurations
    1. KG300GF DTH Drilling Rig for Photovoltaic Foundation
    2. Optional winch
      • Optional Winch Configurations:
        1. 1-ton Carriage Winch – Convenient for lifting drill bits, impact tools, and other equipment.
        2. 8-ton Carriage Winch – Available for use on steep slopes, ensuring the rig has sufficient traction during operation.
    1. KG300GF DTH Drilling Rig for Photovoltaic Foundation
    2. High modulus spur gear large reduction ratio gyrator

      Equipped with four sets of slewing hydraulic motors, the drilling rig provides up to 12000Nm of slewing torque, meeting the construction requirements for large-diameter pile holes.

    1. KG300GF DTH Drilling Rig for Photovoltaic Foundation
    2. Centralized operating platform

      The highly centralized console features a clean and convenient layout, providing an intuitive and clear assessment of the rig's status, with clearly displayed action commands that make operation straightforward and user-friendly.

    1. KG300GF DTH Drilling Rig for Photovoltaic Foundation
    2. Box type large section steel guide rail

      The box-type large-section steel guide rail ensures sufficient strength, while the lifting chain uses a 28A roller chain, allowing a single push length of up to 4 meters.

Technical Parameters
Model KG300GF
Weight 6000kg
Dimensions 6000×2260×2600mm
Drilling hardness f=6-20
Drilling diameter Ø115-305mm
Rotation speed 0-80r/min
Rotation torque 6000N·m
Lifting force 40000N
Feed method oil cylinder-roller chain
Feed distance 2680mm
Travelling speed 0-3.0km/h
Gradeability 30°
Ground clearance 325mm
Tilt angle of feed beam 165°
Swing angle of feed beam Left 45°, right 45°, total 90°
Pitch angle of drill boom Down 50°, up 25°, total 75°
Swing angle of drill boom Left 28.5°, right 36.5°, total 65°
Compensation length of beam 900mm
Air pressure 1-2.4Mpa
Power YC4DK100-T304 (73.5kW/2200r/min)
Drill pipe Ø89×1500mm
Drill hammer 5”, 6”, 8”
Air consumption 15-35m³/min
Winch for feed (optional) 1T
Winch for rig (optional) 8T
