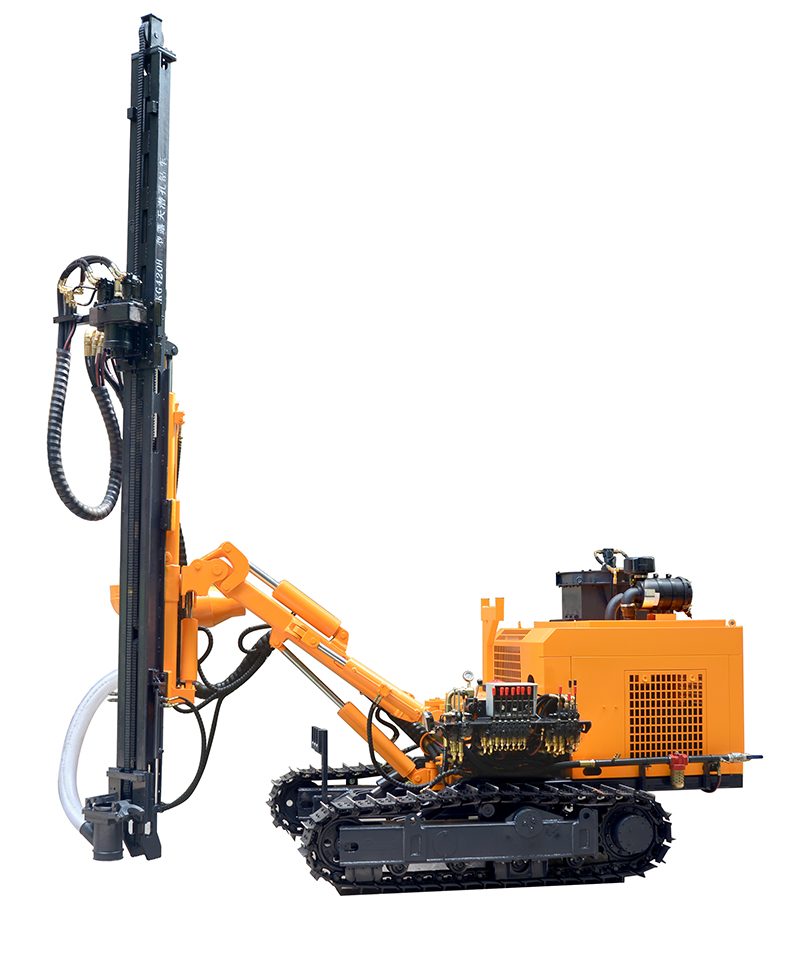

KG420/KG420H Down the hole Drill Rig for Open Use

KG420/KG420H Down the hole Drill Rig for Open Use
Inquiry

The KG420/KG420H drill rig is a hydraulic, diesel powered, self-propelled down the hole rig, designed for open use drilling operations. Equipped with a Yuchai four-cylinder engine, the drill rig meets all relevant national standards for emission and environmental impact. It moves with a folding frame track and four-wheel drive. Added track leveling cylinders and a plunger piston tramming motor improve the working pressure and increase rotary torque and revolving speed. The lifting oil cylinder and chain are expanded to promote the lifting force with reliability. A thickened profile folder is used for the housing, thus improving its intensity and rigidity. The additional ring makes handling and lifting more convenient.

The KG420H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Brief Parameters
Drilling diameter: Φ90-115mm
Depth of economical drilling: 25m
Method of Feed: Oil cylinder-leaf chain
Feed stroke: 3980mm
Supporting power: YCD4R23T8-80 (59KW/2400r/min)/Yuchai YCD4R23T8-80 (59KW/2400r/min)

Technical Parameters
Model of drill rig KG420 KG420H
Weight of complete machine 5200KG 5400KG
Outer dimensions 6000×2150×2500mm 6000×2250×2500mm
Drilling hardness f=6-20
Drilling diameter Φ90-115mm
Depth of economical drilling 25m
Rotary speed 0-120rpm
Rotary torque 1800N·m
Lifting force 40KN
Method of Feed Oil cylinder-leaf chain
Feed stroke 3980mm
Travelling speed 0-2.5km/h
Climbing capacity ≤30°
Ground clearance 500mm
Tilt angle of Beam Down: 135°, up: 50°, total: 185°
Swing angle of boom Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom Down: 50°, up: 25°, total: 75°
Swing angle of drill boom Left: 44°, right: 45°, total: 89°
Leveling angle of track ±10°
Compensation length of beam 900mm
Supporting power YCD4R23T8-80 (59KW/2400r/min)/Yuchai YCD4R23T8-80 (59KW/2400r/min)
DTH hammer M3
Drilling rod Φ64×3m
Air consumption 10-17m³/min
Maximum height of horizontal hole 2750mm
Minimum height of horizontal hole 750mm
Detail features

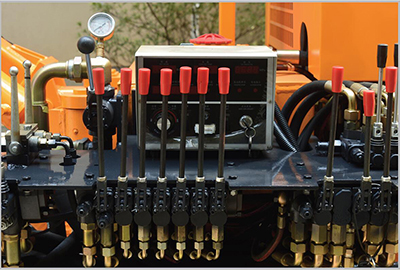

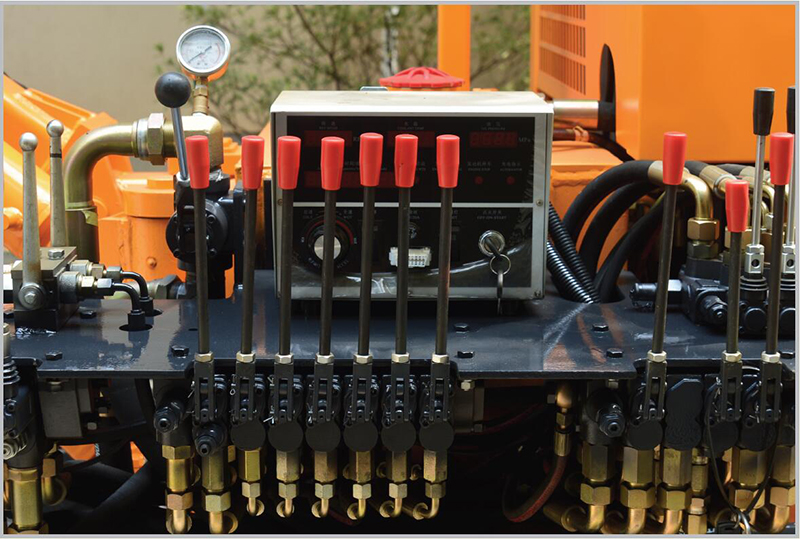

  • Easy Used Control Panel
    Easy Used Control Panel

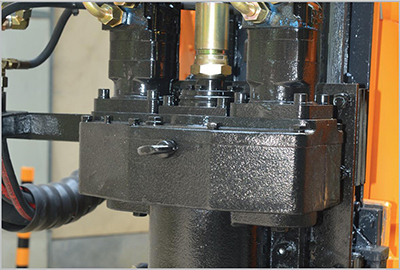

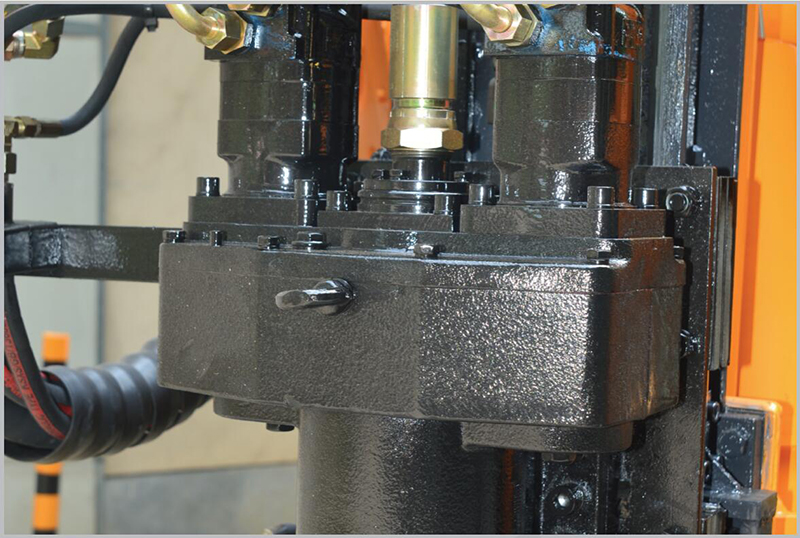

  • High torque gyrator
    High torque gyrator

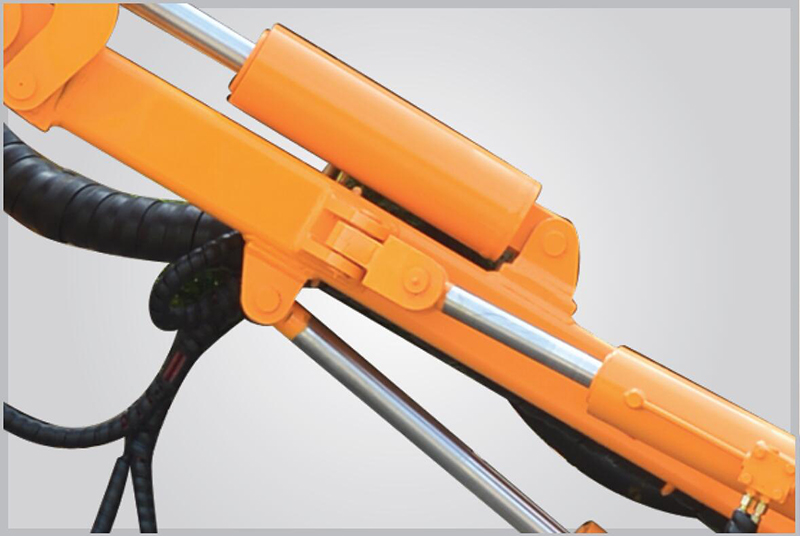

  • Stable hydraulic system
    Stable hydraulic system

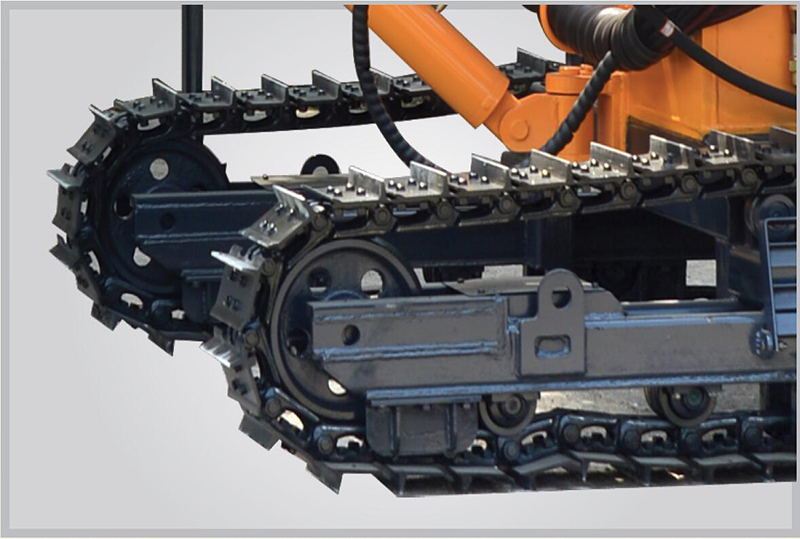

  • Steel track adaptable to all terrains
    Steel track adaptable to all terrains

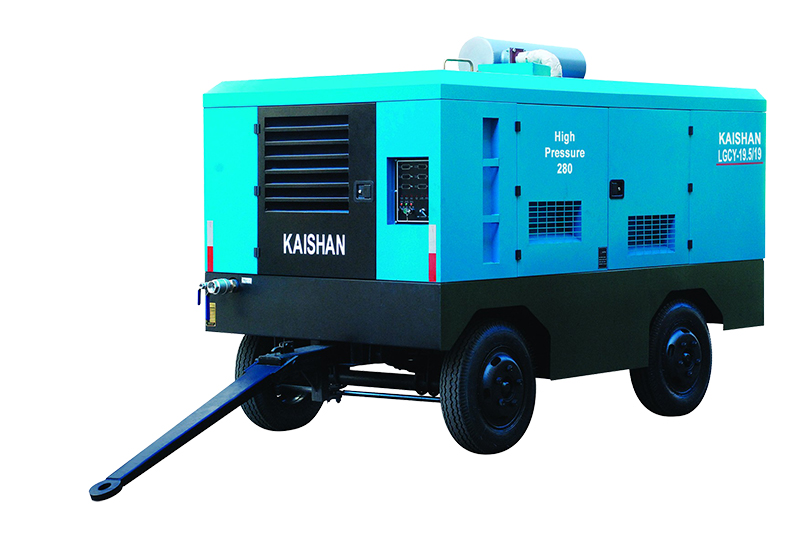

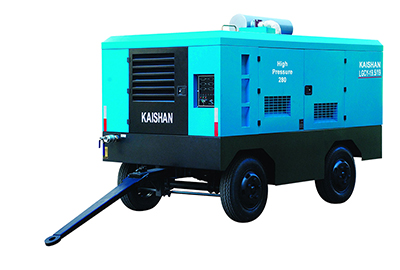

  • Mobile Screw Compressor
    Mobile Screw Compressor
Tags
Down the hold drill rig open use drill rig drilling equipment
